MPRXCX® FLEXISHIP® 3.6/6 (7.2) kV MG new
Beschreibung
Beschreibung
Normen
-
InternationalIEC 60092-350; IEC 60092-351; IEC 60092-354; IEC 60092-360; IEC 60228; IEC 60332-1; IEC 60332-3-22; IEC 60754-1; IEC 60754-2; IEC 61034
Application
MPRXCX ® FLEXISHIP® Medium voltage cable type is used on board of ships for fixed installations complying with IEC 60092-352. Semi-conductive layer over insulation is easily stripable.
MPRXCX F® LEXISHIP type withstands the IEC 60332-3-22 fire test on bunched cables and performs to the SOLAS requirements.

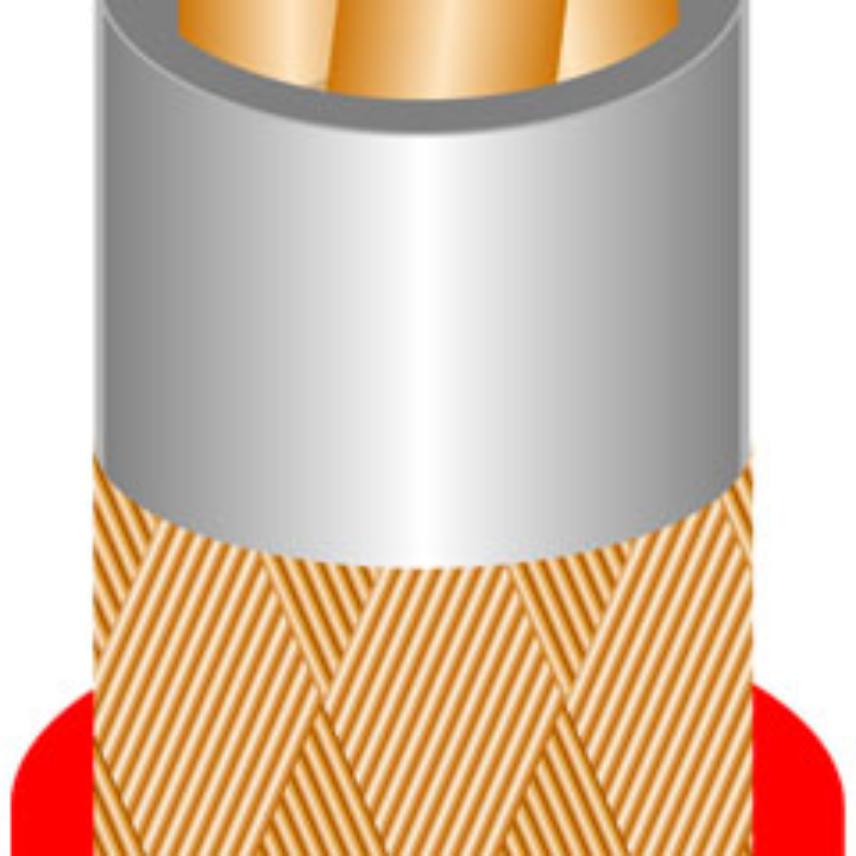

Design
- Conductor
Stranded bare copper
Class 5
- Extruded semi conductor
- Insulation
XLPE (cross-linked polyethylene)
- Screen
Extruded semi-conductor
Bare copper tape
- Inner covering
Polyolefin
- Armouring
Bare copper braid
- Outer sheath
Polyolefin SHF1 (SHF2 on resquest)
Colour: red
Marking
I NEXANS I MPRXCX® FLEXISHIP "n" x "s" mm2 3.6/6 kV 90°C
IEC 60332-3-22 "WW/YY" + metric marking
Eigenschaften
Eigenschaften
Konstruktionsmerkmale
Konstruktionsmerkmale
Halogenfrei
-
Mantelfarbe
Rot
Abmessungsmerkmale
Abmessungsmerkmale
Aderanzahl
-
Leiterquerschnitt
- mm²
Außendurchmesser Mindestwert
- mm
Maximaler Außendurchmesser
- mm
Nettogewicht ca.
- kg/km
Elektrische Eigenschaften
Elektrische Eigenschaften
Nennspannung Uo/U
-
Zulässige Belastbarkeit in Luft
- A
Mechanische Eigenschaften
Mechanische Eigenschaften
Korrosionsbeständigkeit
IEC 60754-2
Anwendungsmerkmale
Anwendungsmerkmale
flammwidrig
-
Flammwidrig
IEC 60332-1
Rauchdichte
-
Betriebstemperatur
- °C
Elektromagnetisch geschirmt
-
