804PB/G - Coupling connector for 480TB/G, 484TB/G and 489TB/G, EPDM

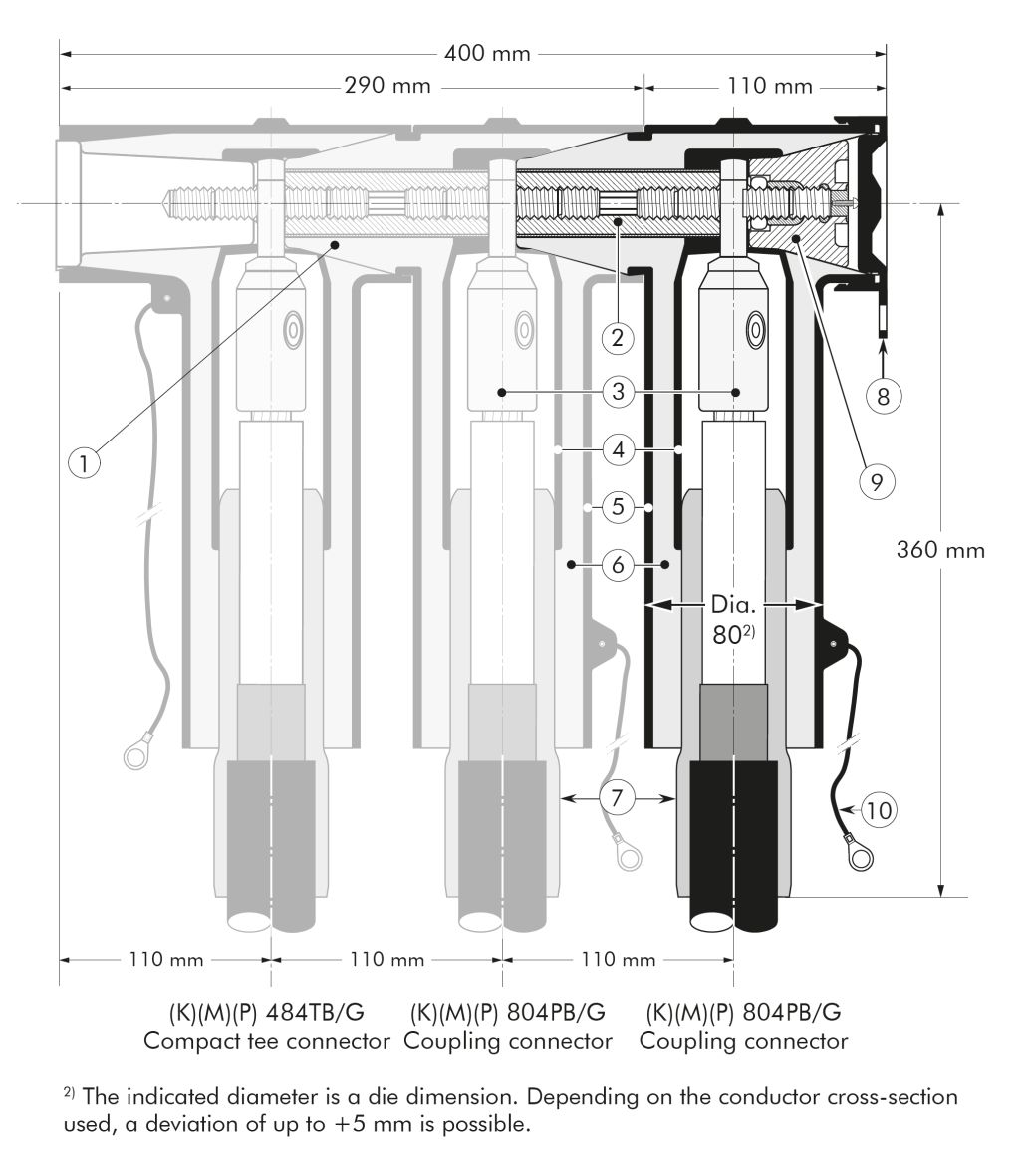

1. Interface designed to fit 480TB/G, 484TB/G or 489TB/G tee connector
2. Bus for 804PB/G
3. Bolted or crimp conductor contact
4. Conductive EPDM insert
5. Conductive EPDM jacket
6. Insulating EPDM layer moulded between the insert and the jacket.
7. Cable reducer
8. Conductive EPDM cap
9. Basic insulating plug (with VD point)
10. Earth lead

The screen break design enables cable outer sheath testing without removing or dismantling the connector.

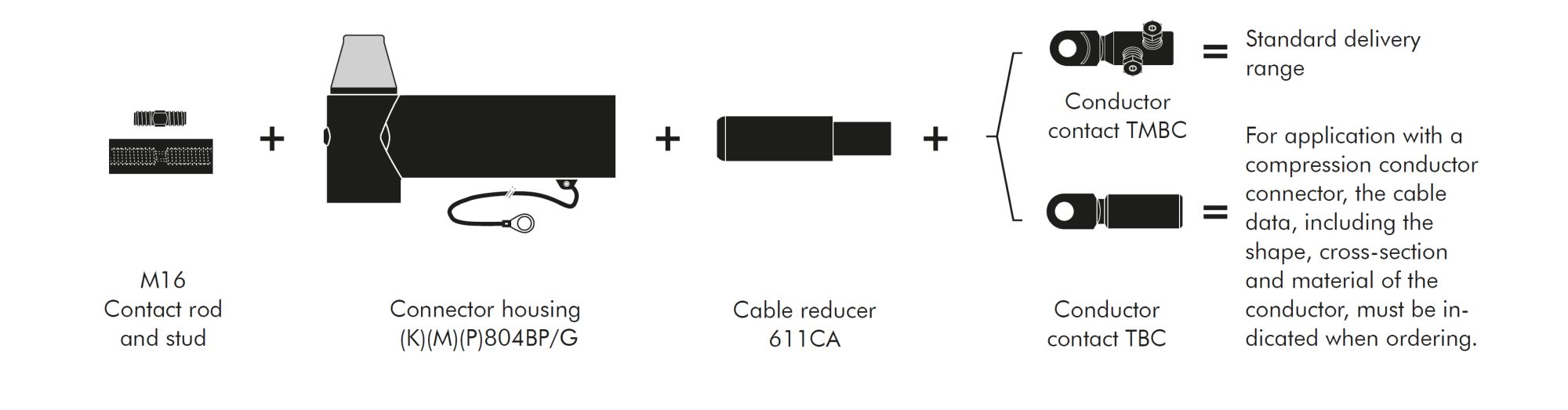

The complete (K)(M)(P)804PB/G coupling connector kit comprises 3x the following components.

The kit also comprises:

+ installation instructions
+ silicone grease
+ wipers
+ screen wire cable lugs

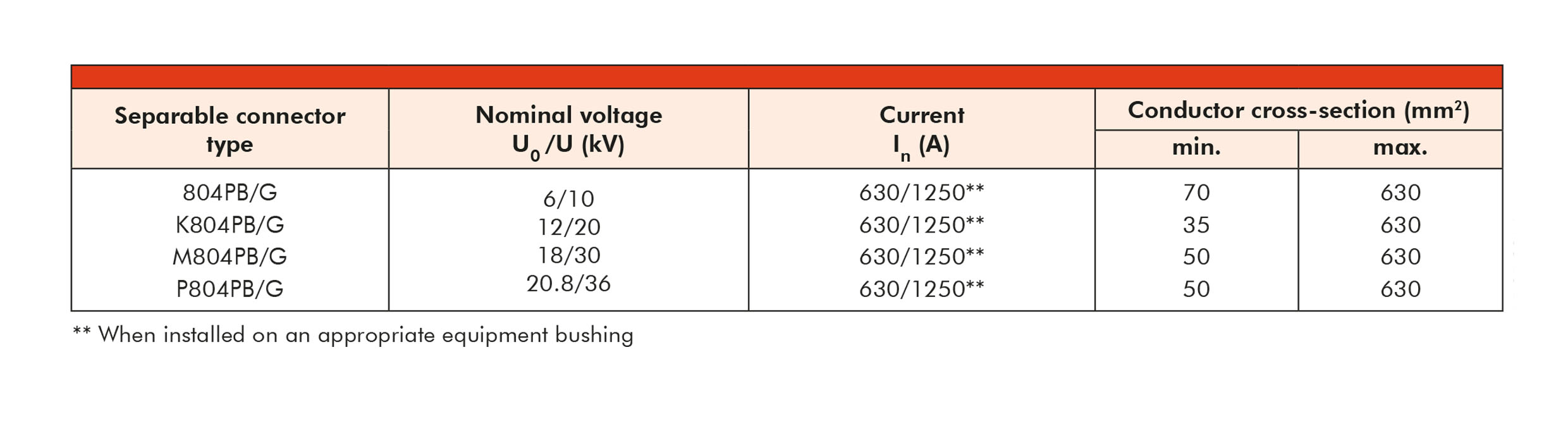

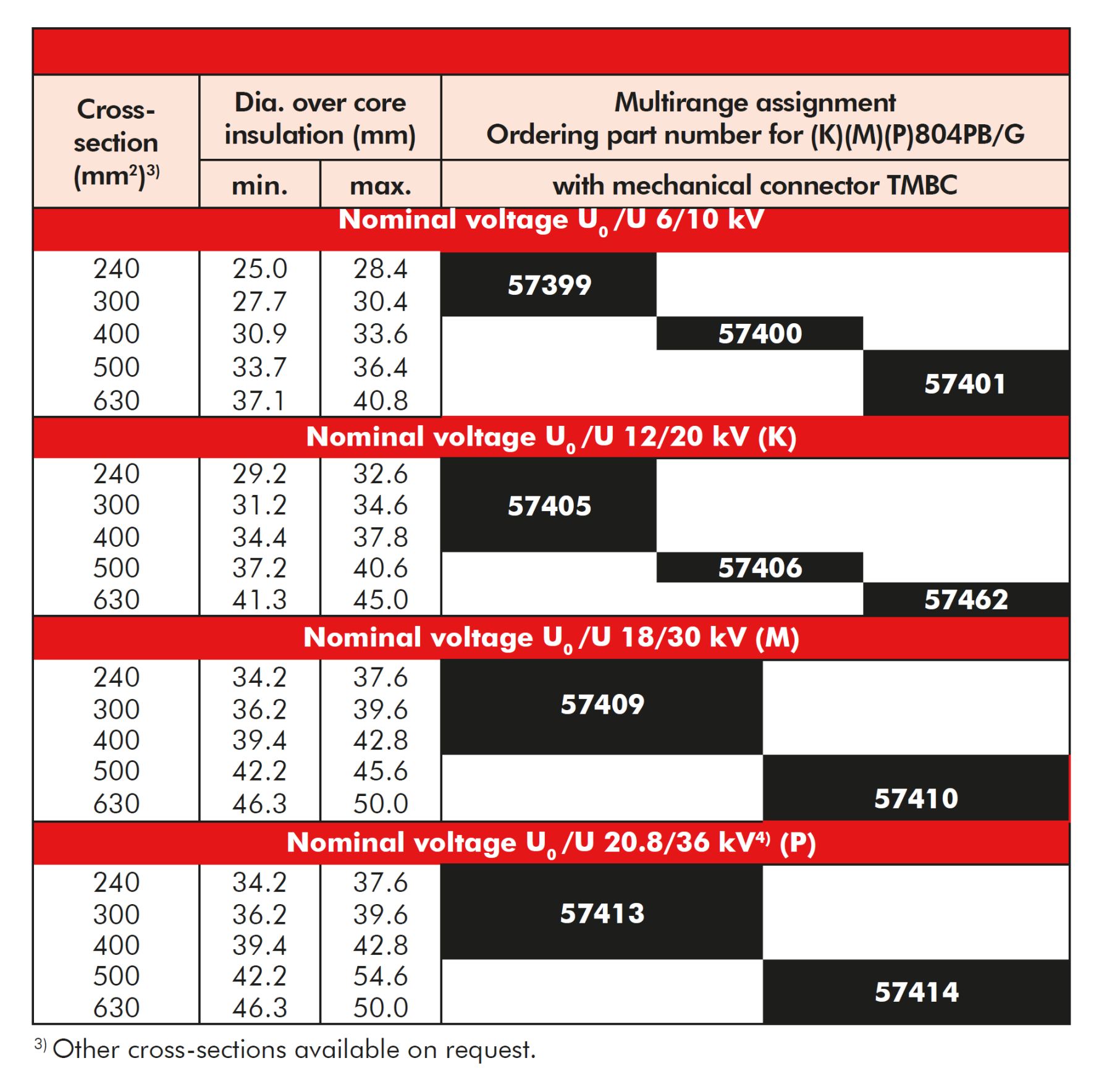

Indicate the part number for multirange application when ordering (see table)

Order example:
1 coupling connector for 12/20 kV, for 120-240 mm² with mechanical conductor connector. Order according to the table: K804PB/G with part number 57404.


Note:
The classification does only apply for polymeric insulated XLPE cables (dimensions acc. to DIN VDE 0276-620) with extruded conductive screen.


³⁾ Since the dimensions for cables at voltage level 20.8/36 (42) kV are not yet standardised, the conductor cross-sections and their assingnment of diameters over core insulation given in the table are to be considered appproximate values. When ordering accessories, we would like to ask you to indicate the checked diameters over core insulation.


The data given were determined diligently, but do not release our customers of the duty to carry out tests themselves in order to check the suitability of the products delivered by us for the intended use. We reserve the right to modify characteristic and performance data according to the present state of technology. Processing and use of the products cannot be controlled by us and are therefore exclusively in your field of responsibility.

Our products meet the VDE standards respectively correspond to DIN pages and IEC recommendations.

Attention: Before first design in please contact manufacturer.

The products, described in this catalogue, are designed for connection of bare energy cable conductors (Class 1 & 2) with description of round solid (RE), round stranded (RM), as well as sector solid (SE), sector stranded (SM) and round stranded compacted (RMV) for conductor temperatures up to 90 °C. All conductor filling materials like tapes, yarn, powder or similar need to be completely removed before the installation. A check on basis of the actual existing conductor dimensions by the user is indispensable. This applies also for the application of Class 6 conductors or other special conductor types.

Impact wrenches have to be approved by Nexans! Depending on different conductor material or conductor type, indicated values may differ from test values acc. to IEC 61238-1. The use of fine stranded conductors has to be approved by Nexans Power Accessories Germany GmbH.
