200LR - Elbow connector, EPDM, Interface A

1. Conductive EPDM insert with integrated anti-twist and locking system
2. Conductive EPDM jacket
3. Insulating EPDM layer between insert and jacket (with voltage detection point)
4. Type A interface as described by CENELEC EN 50180 and 50181
5. Bolted conductor contact
6. Earthing lead
7. Cable reducer

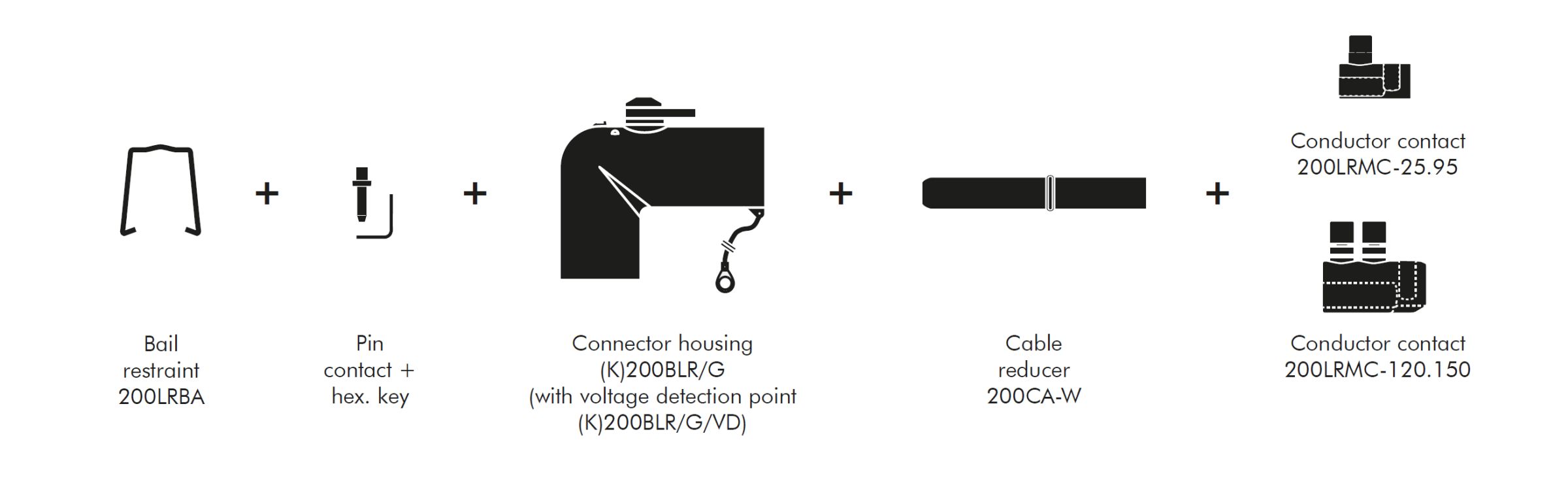

The complete (K)200LR/G elbow connector kit comprises 3 x the following components.

The kit also comprises:
+ installation instructions
+ silicone grease
+ wipers
+ screen wire cable lugs

Indicate the part number when ordering (see table).

Order example:
1 elbow connector kit for 12/20 kV, for 35-95 mm² with mechanical conductor contact.

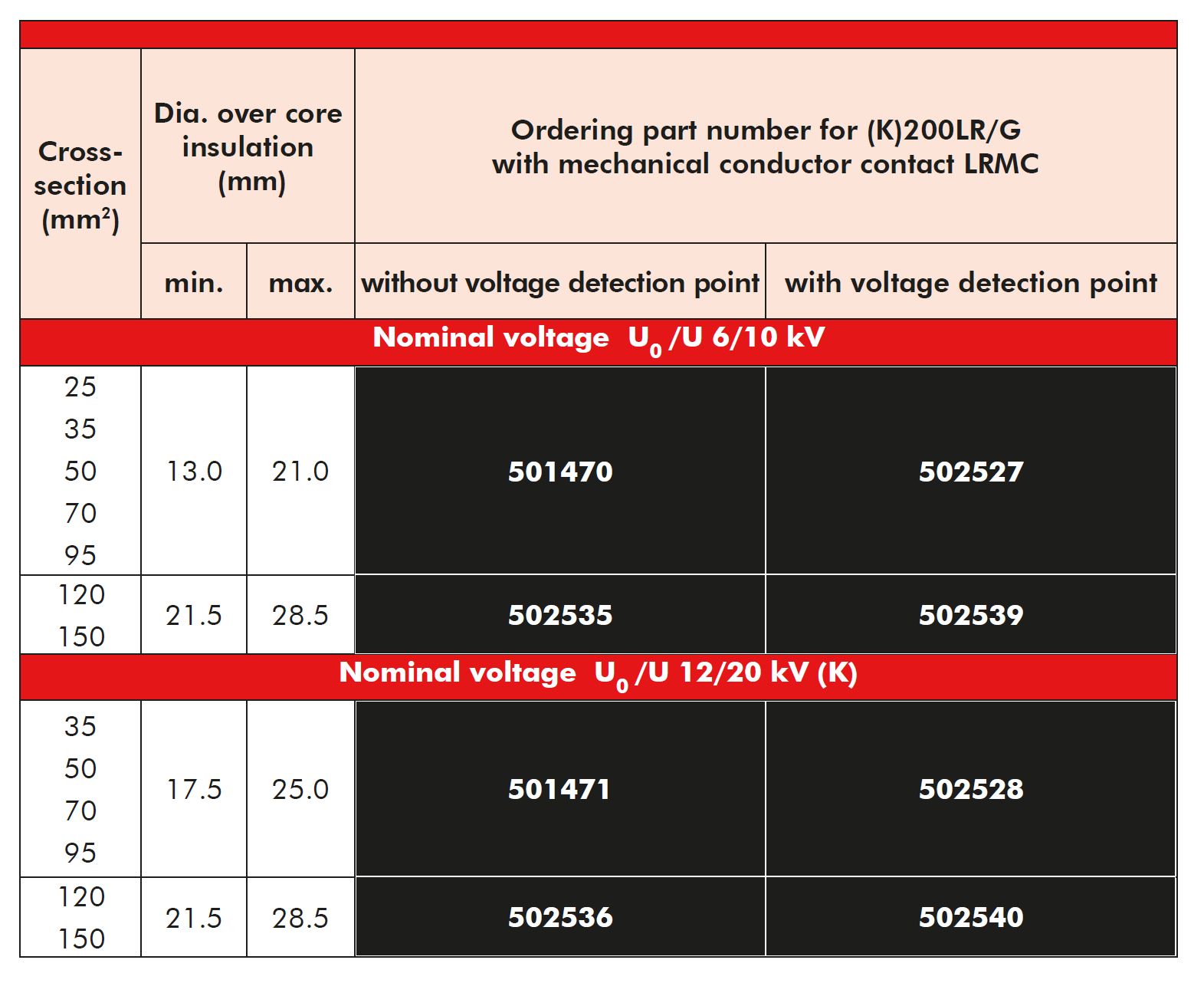

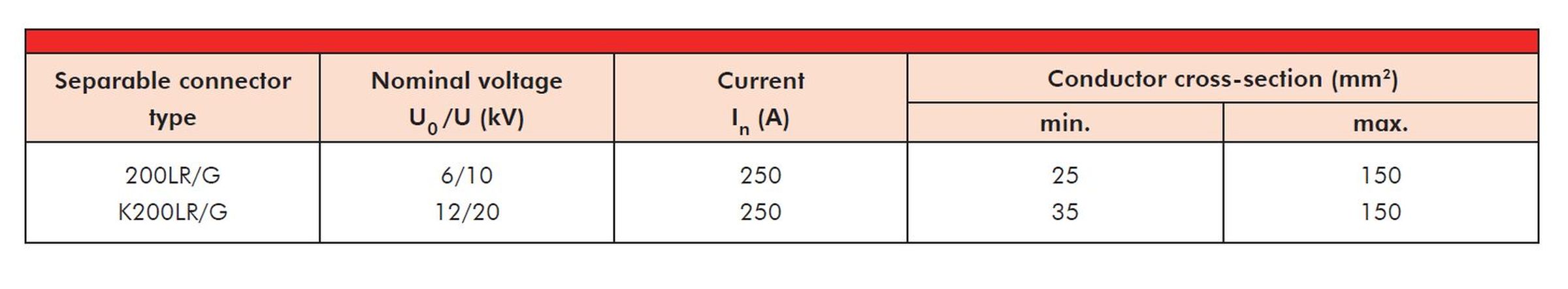

Order according to the table:
1 kit – K200LR/G with part number 501471.

Note:
The assignment only applies to XLPE-insulated cables (dimensions according to DIN VDE 0276-620) with extruded conductive screen and stranded conductors. For use with other cable designs contact our sales representative.
