CSJ - Cold-shrinkable single-core straight joint up to 36 kV

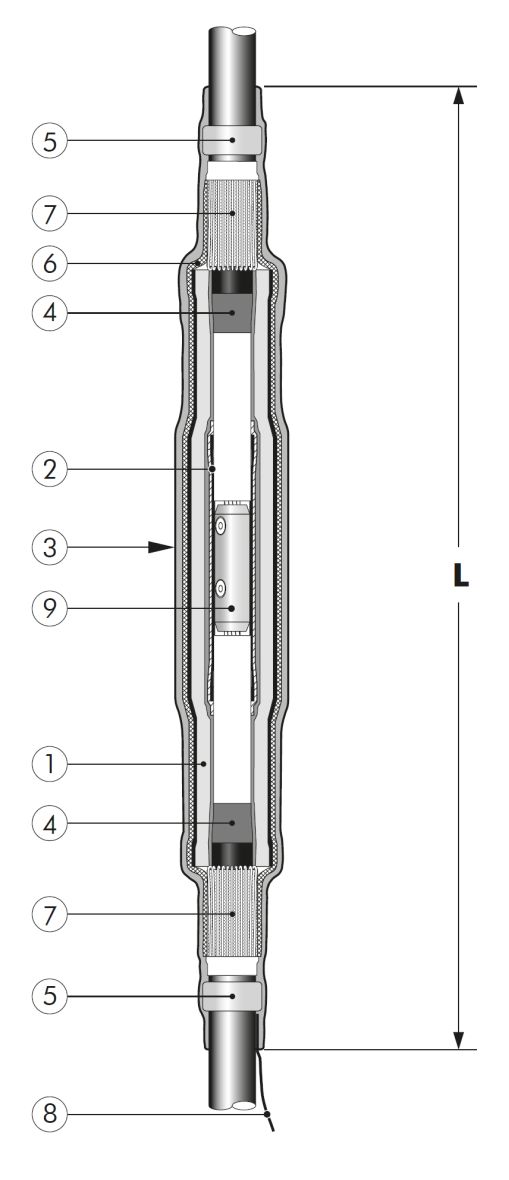

1. Extruded triple layer EPDM rubber body
2. Two layer plate with a semi- conductive and a field control mastic layer
3. Overall protective EPDM cover
4. Field control mastic
5. Water sealing mastic
6. Copper braid
7. Self-adhesive copper tape
8. Traceability tag
9. Mechanical conductor connector

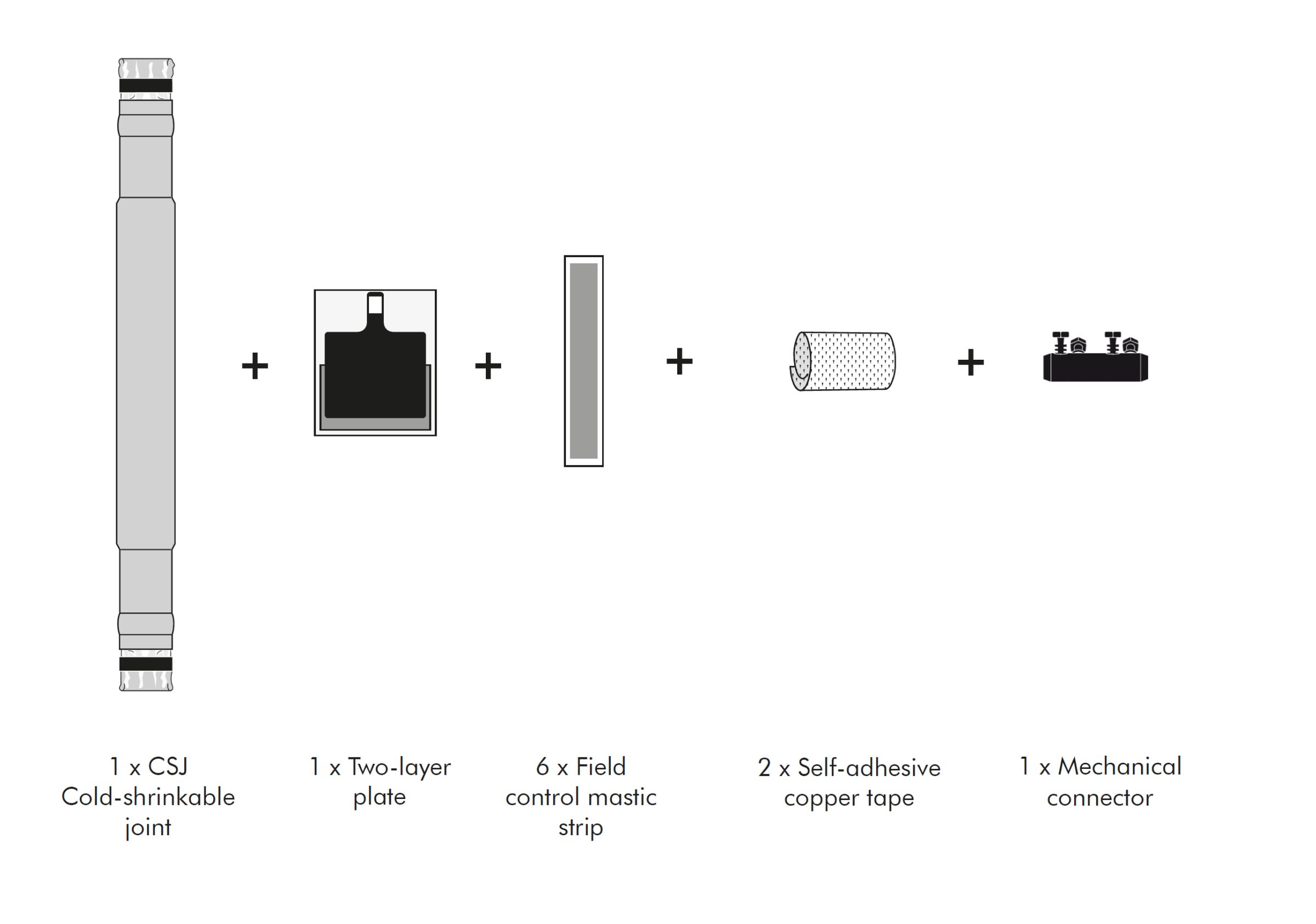

The complete joint kit comprises the following components.


The kit also comprises:
+ installation instructions
+ silicone grease
+ white pen
+ gloves
+ assembly gauge
+ adhesive tape
+ rubber rings
+ assembly incidentals

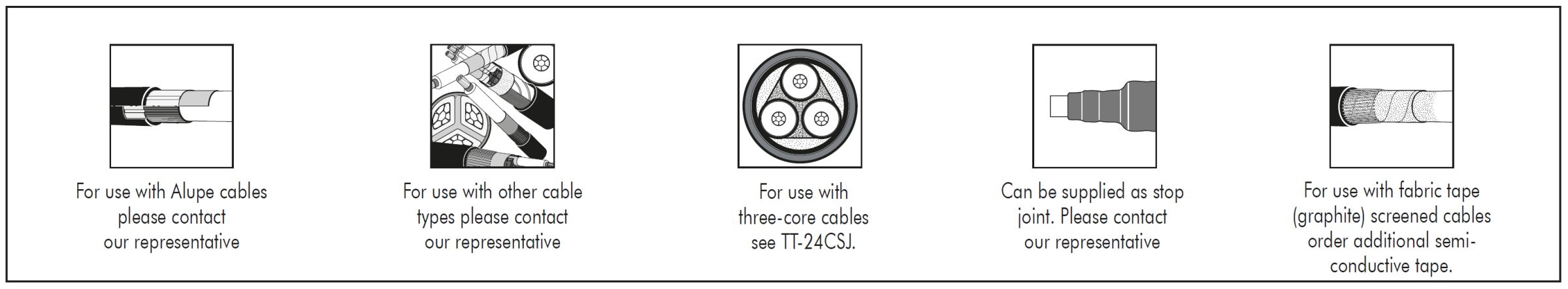

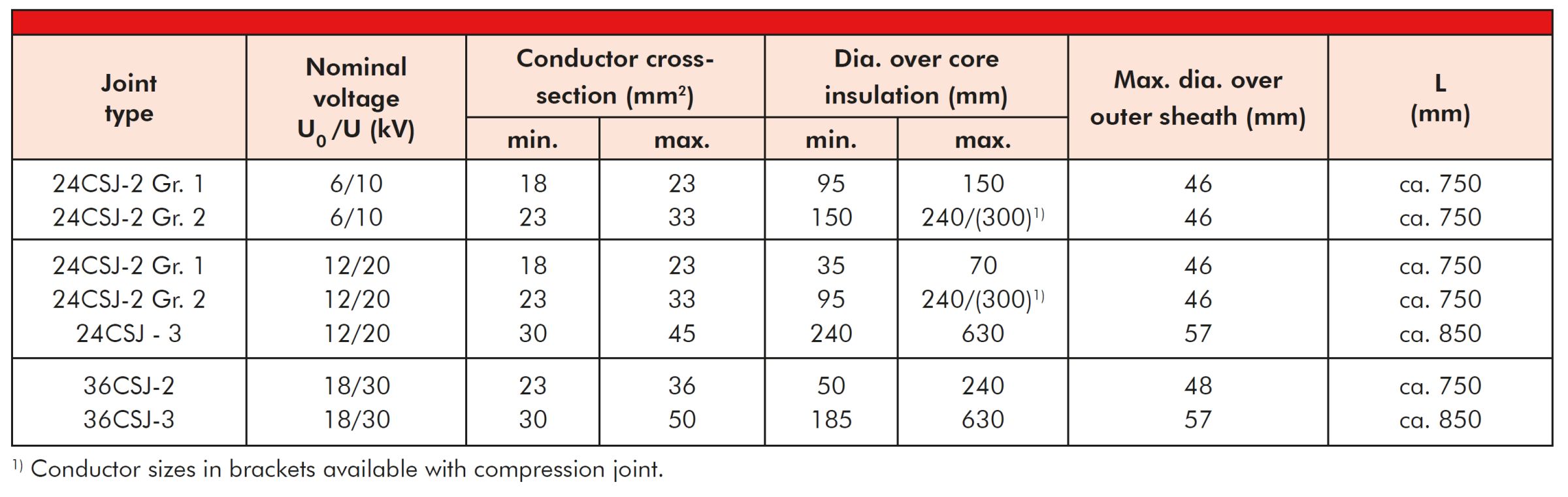

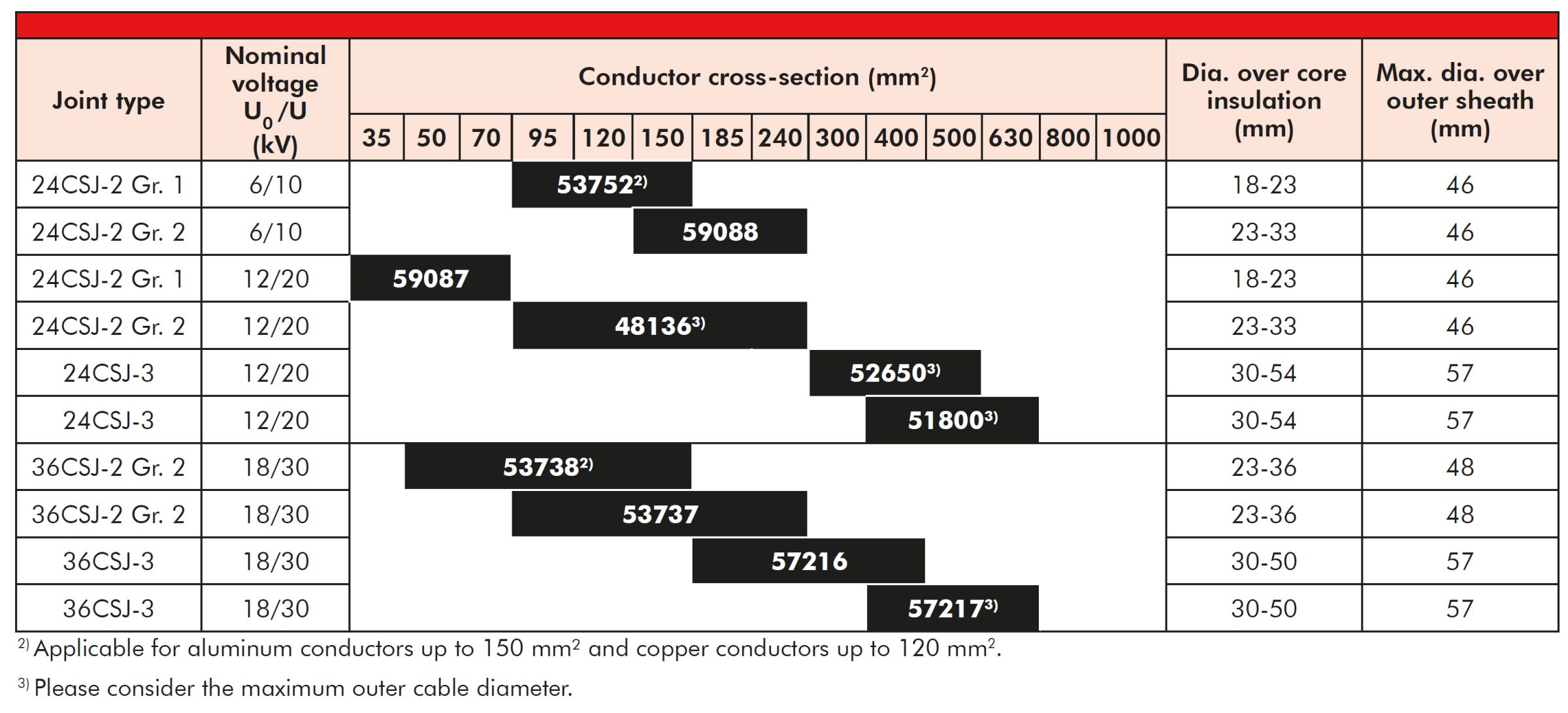

Select the straight joint type corresponding to the cable type and dia. over core insulation.


Order example:
Cold-shrinkable straight joint
Nominal voltage 12/20 kV
Conductor cross-section 95-240 mm²
Dia. over core insulation 23-33 mm²
Order number: 48136
